Bleeding kelsey hayes abs system. The wheel bleeding sequence is RR LR RF LF. My problem is I cannot get any significant amount of fluid to the rear when vacuum b. Bypassing dump valve in modulator allowing fluid into the low-pressure accumulator causes low pedal on vehicles equipped with Kelsey Hayes EBC310EBC325EBC410 ABS systems.
Kelsey-hayes ebc4 4wal abs vehicle applications. Open the internal bleed screws on the. Open the internal bleed screws on the modulator one quarter to a half-turn.
Once all the air is out of the master cylinder and brake lines no bubbles in the clear plastic bleeder hose you have attached to each of the calipers or wheel cylinders you can proceed to bleeding the ABS system. But there are ways around it. If the brakes still dont feel right after you have properly flushed the brakes then you might need to bleed the ABS module itself.
It looks easy enuff to make. Ive vacuum bled the front and rear brakes. The ABS system used on 95 through early 2000s GM trucks is the Kelsey-Hayes EBC310.
5 Kelsey-Hayes Antilock Brake System W Series Chassis TOC 2006 WorkhorseCustom Chassis All Rights Reserved ABS HYDRAULIC FLOW CHARTS BPMV Hydraulic Flow Chart Brakes Released The following graphic shows fluid flow with the brakes released. I filled the weed sprayer with brake fluid and connected hose to brake line I disconnected. Brakes can be bled in the usual way manually or with pressure or vacuum equipment.
If a pressure bleeder is used the combination valve must be held open. To do this you need to turn on the engine or at least in a position where the battery is about to activate the ABS. Bleeding the BPMV is rather complex on the Kelsey-Hayes 4WAL system.
The system consists of Electro-Hydraulic Control Unit EHCU Vehicle Speed Sensor VSS VSS buffer wheel sensors. Kelsey-Hayes RWAL Antilock Brakes.
Low Pedal On Vehicles Equipped With Kelsey Hayes Ebc310 Ebc325 Ebc410 Abs Systems Phoenix Systems
96 Chevy K1500 With Kelsey Abs Brake Bleeding I Replaced A Rusty Leaking Rear Brake Line Up To The Front Axle Fitting
Low Pedal On Vehicles Equipped With Kelsey Hayes Ebc310 Ebc325 Ebc410 Abs Systems Phoenix Systems
Automotive Anti Lock Brake Systems Abs Haynes Techbook Haynes Manuals
Abs Anti Lock Braking Systems
Kelsey Hayes 4wal Antilock Brakes
Abs Anti Lock Braking Systems
Low Pedal On Vehicles Equipped With Kelsey Hayes Ebc310 Ebc325 Ebc410 Abs Systems Phoenix Systems

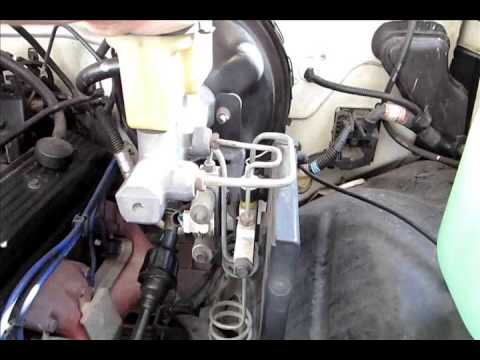

Spongy Abs Brake Fix 88 To 98 Chevrolet Silverado Youtube
Ppt Brake Bleeding Methods And Procedures Powerpoint Presentation Free Download Id 3226600
Kelsey Hayes Rwal Antilock Brakes
2
Abs Anti Lock Braking Systems
Help Kelsey Hayes Abs The 1947 Present Chevrolet Gmc Truck Message Board Network
Abs Anti Lock Braking Systems
How To Bleed Kelsey Hayes Abs With Pictures Videos Answermeup
Fixing Kelsey Hayes Ebc4 S 10 Forum
2
Kelsey Hayes 4wal Antilock Brakes
Diy Scantool To Bleed Abs Does It Exist Blazer Forum Chevy Blazer Forums
2
How To Bleed Kelsey Hayes Abs Module With Pictures Videos Answermeup
Kelsey Hayes 4wal Antilock Brakes
Kelsey Hayes Abs
Abs Warning Systems Operation
No Communication With The Abs Module My Abs Light Came On Took
Spongy Abs Brake Fix 88 To 98 Chevrolet Silverado Youtube
Abs Anti Lock Braking Systems
1999 Blazer 4wd Ls Brake Booster Blazer Forum Chevy Blazer Forums

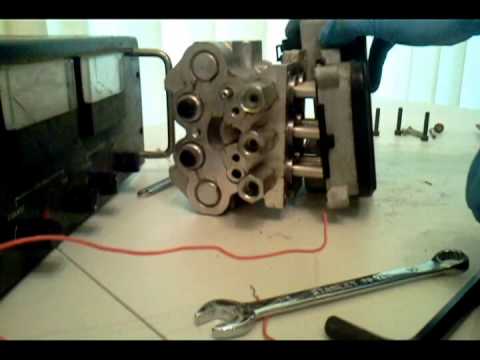

How To Remove And Repair A Kelsey Hayes 325 Abs Module Youtube
